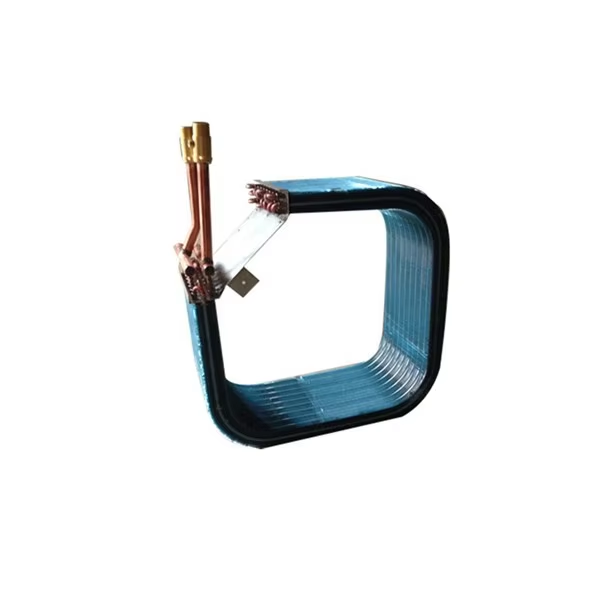

We are Delkang Refrigeration Equipment, with over 20 years of experience in refrigeration equipment manufacturing. Our G-type condenser is specifically designed for installations with limited space.
It is particularly suitable for industrial plants and ship engine rooms where space constraints are critical. The G-shaped configuration allows efficient use of available space.
Flexible Dimensions for Site Requirements
Standard dimensions range from 2.0–5 m in length, 1.0–2.0 m in width, and 1.2–3.0 m in height. The default connection configuration is top inlet and bottom outlet, with full customization available.
The unit integrates easily with existing piping systems. OEM and ODM services are supported.
Durable Construction for Reliable Operation
The condenser is designed with a pressure rating of ≥1.6 MPa and seismic resistance of grade 7 or higher, ensuring reliable operation under vibration and dynamic conditions.
It features 6–12 rows of fins and operates at a face air velocity of 2.0–3.5 m/s, maintaining stable heat exchange performance.
Our factory employs 30 workers and implements strict quality control. Each unit is thoroughly inspected before delivery. Third-party inspection is also supported.
Key Specifications
|
Parameter |
Value |
|
Installation Size |
Length: 2.0–5 m × Width: 1.0–2.0 m × Height: 1.2–3.0 m |
|
Connection Type |
Top inlet/bottom outlet; customizable |
|
Structural Strength |
Pressure ≥1.6 MPa; Seismic grade ≥7 |
|
Fin Parameters |
6–12 rows; Face air velocity 2.0–3.5 m/s |
|
Maintenance Space |
≥0.8 m required |
|
Maintenance Design |
Built-in cleaning port; supports online cleaning |
The integrated cleaning port allows for maintenance without shutting down operations. This G-type condenser is widely used in marine cooling systems and compact petrochemical installations.
