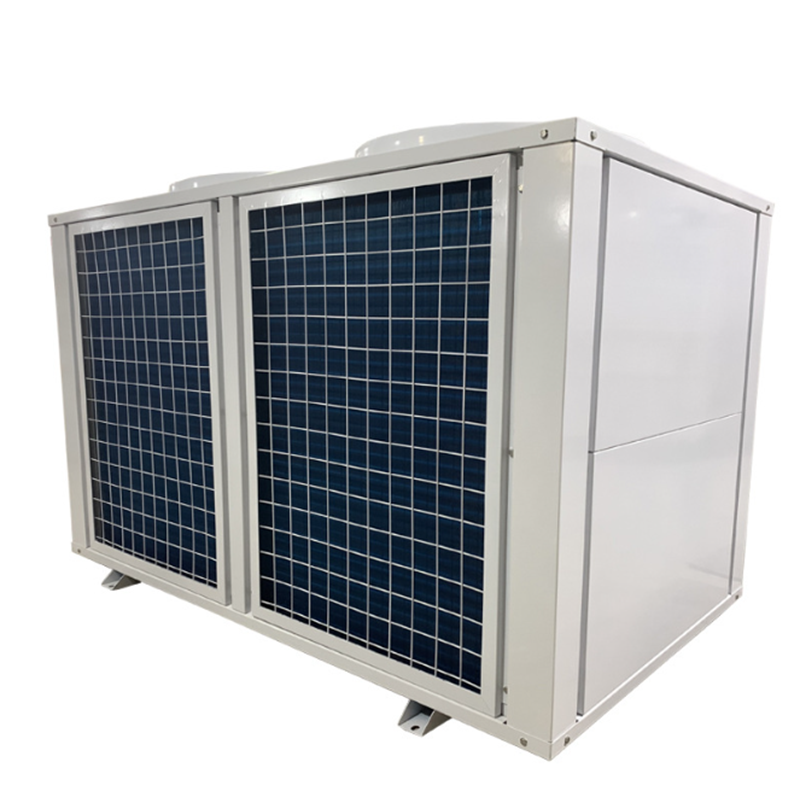

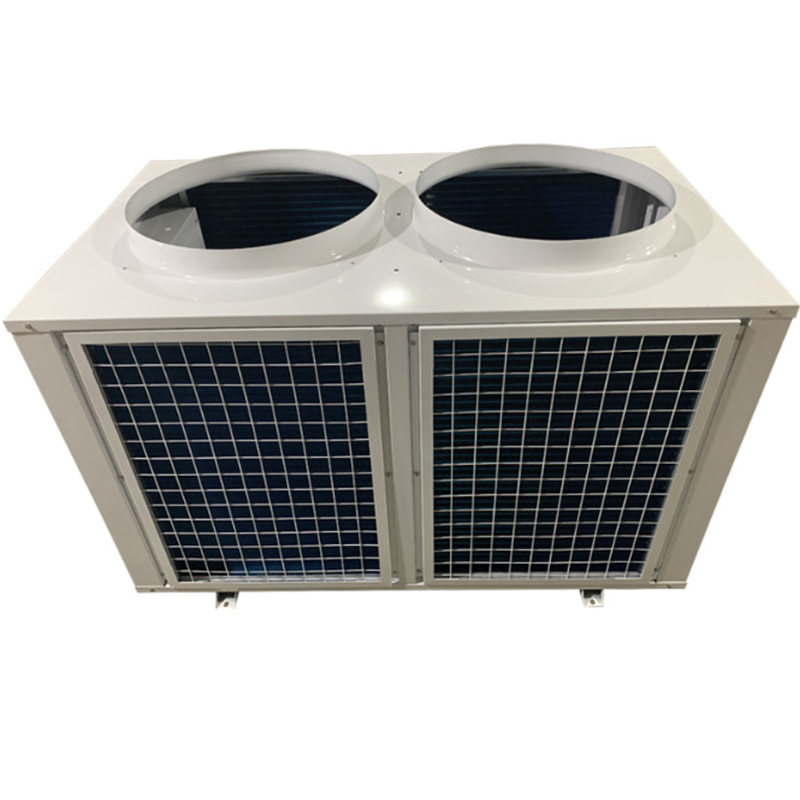

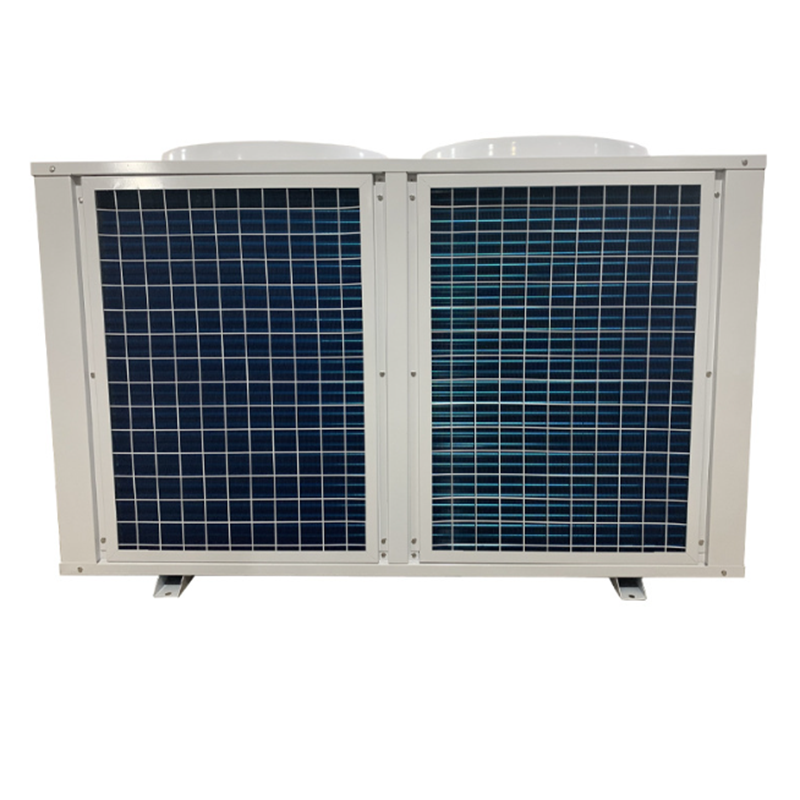

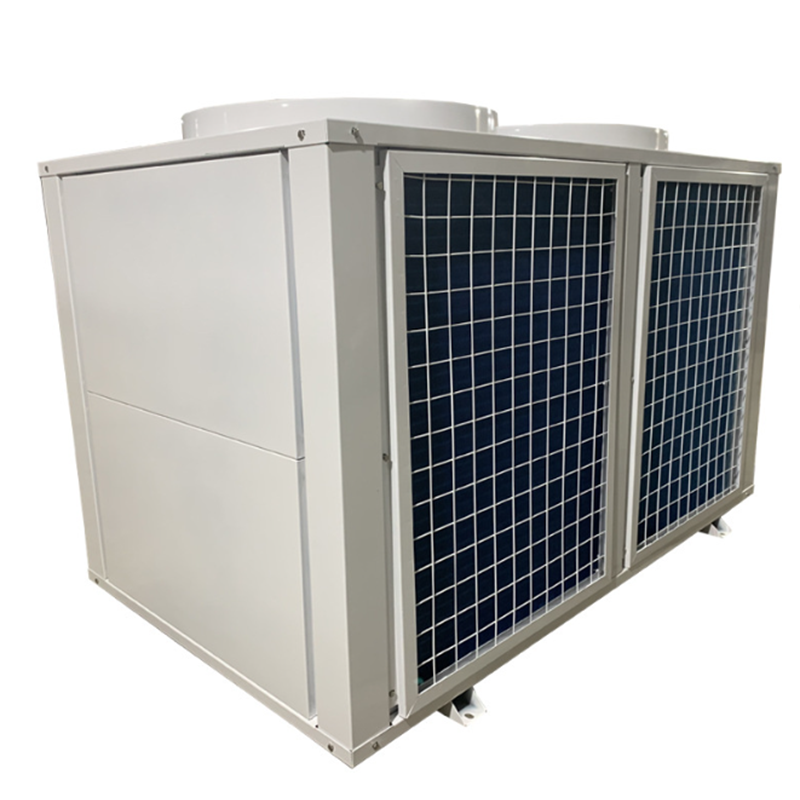

We are Delkang Refrigeration Equipment, based in Xiangshui County. We have been specializing in refrigeration equipment since 2006. Our air-cooled condensing unit is an excellent solution for outdoor installations and areas with limited water supply.
It does not require cooling water and instead uses fans to dissipate heat efficiently. Designed for outdoor use, it can be installed with confidence in a wide range of environments.
Reliable Performance in Various Weather Conditions
This unit operates within a temperature range of -20°C to 45°C. For high-temperature environments, it can be customized to operate at up to 55°C.
It is widely used in small commercial refrigeration systems and outdoor air conditioning applications. Our factory covers 6,000 square meters and employs 30 workers. Each unit undergoes strict inspection to ensure consistent quality. We also offer OEM and ODM services and can manufacture according to your drawings.
Flexible Fan Configuration
We provide multiple fan options to meet different requirements. Each fan delivers an airflow of 8,000 to 25,000 m³/h. You can choose between a standard motor and a variable-frequency (inverter) motor. The inverter motor improves energy efficiency by adjusting performance based on actual demand.
The fins feature a wave design and are typically made of aluminum. For harsh environments, stainless steel 304 is available. The unit is easy to install and eliminates the need for water treatment.
Key Specifications
|
Parameter |
Value |
|
Single Fan Airflow |
8,000–25,000 m³/h |
|
Fan Power |
Standard: 0.75–5.5 kW/unit; Inverter: 1.1–7.5 kW/unit |
|
Fin Spacing |
Standard: 2.0–3.5 mm; Dust-proof: 1.8 mm |
|
Ambient Temperature |
Standard: -20°C to 45°C; High-temp version up to 55°C |
|
Heat Dissipation Area |
Commercial: 30–150 m²; Industrial: 150–800 m² |
|
Noise Level |
Standard: 65–75 dB; Low-noise: ≤60 dB (at 1 m) |
|
Protection Rating |
Standard: IP54; Outdoor rainproof: IP55 |
We provide a one-year warranty for your peace of mind. Sample units are available for testing. Our air-cooled condensing unit is a reliable choice for your projects.
