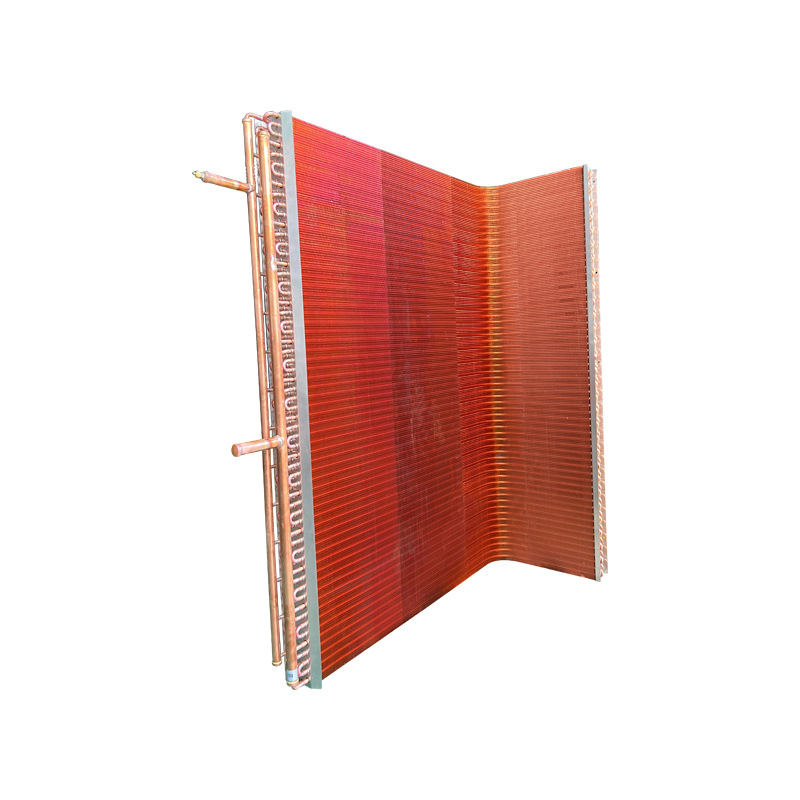

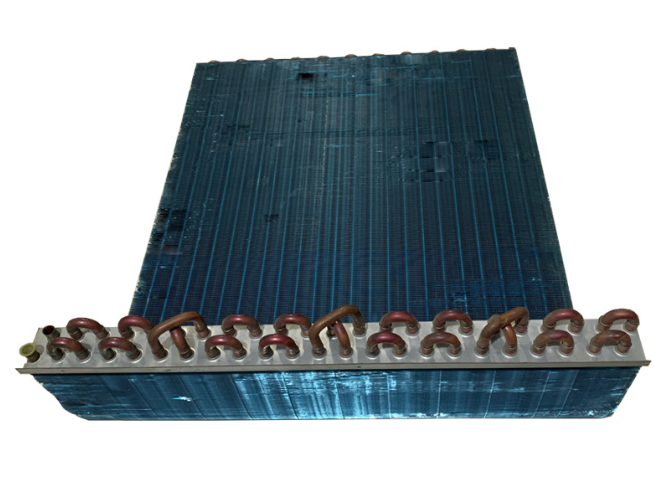

We are Delkang Refrigeration Equipment, based in Xiangshui County, with industry experience since 2006. Our L-type condenser is specifically designed for confined or irregular installation environments.
It is widely used in marine applications and retrofitting projects in existing facilities.
Flexible Design for Your Site
The unit dimensions typically range from 1.5–4 m in length, 1.2–3 m in width, and 1.0–2.5 m in height. Custom sizing is available to match your installation conditions.
Multiple connection configurations are supported, including side inlet/outlet and bottom inlet/top outlet. Full customization is available to ensure seamless integration with your system.
Durable Structure for Demanding Conditions
The unit is designed with a pressure rating of ≥1.6 MPa and seismic resistance of grade 7 or higher. It features 6–12 rows of fins and operates at a face air velocity of 2.0–3.5 m/s.
It performs reliably under vibration and dynamic conditions. Our factory is equipped with advanced production lines, and we support OEM and ODM services. A one-year warranty is provided.
Key Specifications
|
Parameter |
Value |
|
Installation Size |
Length: 1.5–4 m × Width: 1.2–3 m × Height: 1.0–2.5 m |
|
Connection Type |
Side inlet/outlet or bottom inlet/top outlet; customizable |
|
Structural Strength |
Pressure ≥1.6 MPa; Seismic grade ≥7 |
|
Fin Rows |
6–12 rows |
|
Face Air Velocity |
2.0–3.5 m/s |
|
Maintenance Space |
≥0.8 m required |
|
Maintenance Design |
Built-in cleaning port; supports online cleaning |
A built-in cleaning port allows for easy maintenance without disassembly. This L-type condenser is a reliable choice for ship cooling systems and compact industrial projects.
