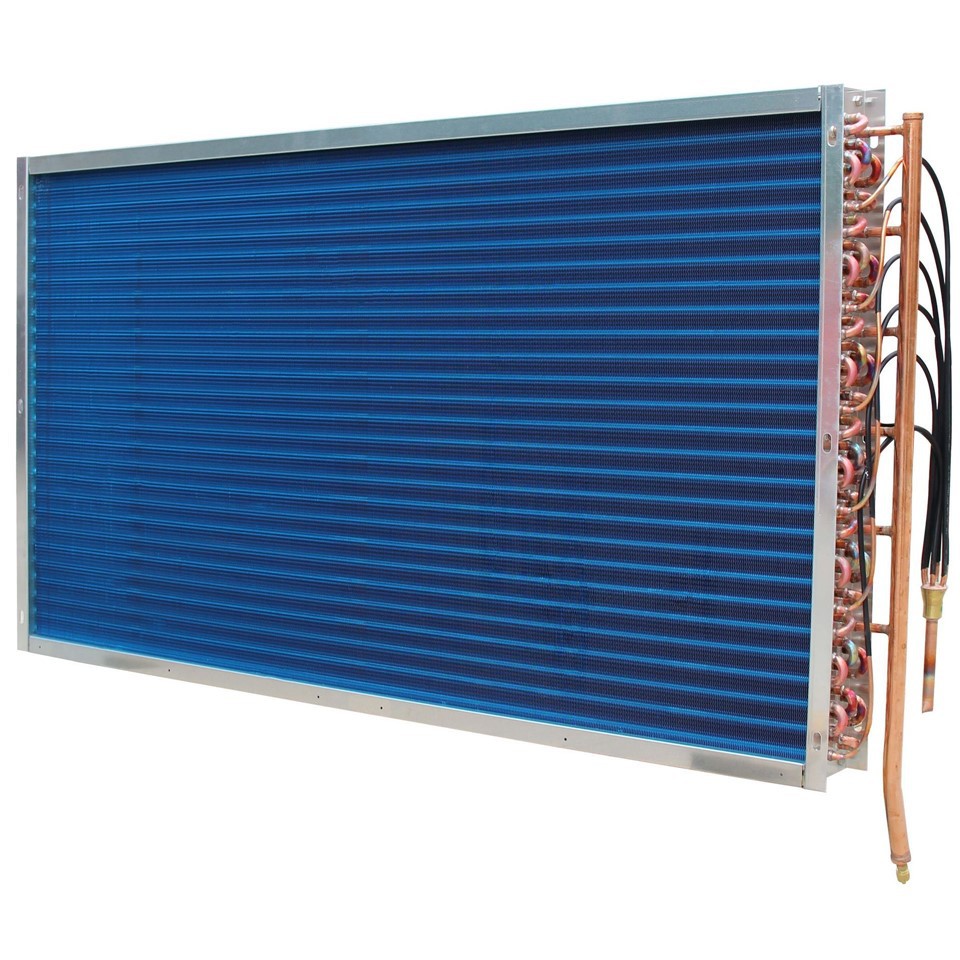

We are Delkang Refrigeration Equipment. Since 2006, we have focused on developing flexible and easy-to-maintain heat exchange solutions. Our plate-type condenser features a compact, modular design that allows for easy installation and cleaning.
Multiple units can be combined as needed, making it an ideal solution for small-scale cooling systems and fine chemical applications.
Material Options for Different Environments
Plate thickness ranges from 0.8 to 1.2 mm. Standard materials include stainless steel 304 and 316L. For seawater or highly corrosive environments, titanium plates are available.
Gasket materials can also be selected based on application needs. NBR rubber supports temperatures up to 120°C, while fluorine rubber can withstand up to 200°C and offers excellent resistance to acids and alkalis.
Our factory covers 6,000 square meters and employs 30 workers. OEM and ODM services are available.
Easy Maintenance
We provide dedicated cleaning tools, allowing the unit to be cleaned within two hours without requiring specialized technicians.
This condenser is widely used in laboratories and food processing industries due to its compact size and reliable performance. Each unit is thoroughly inspected before delivery and includes a one-year warranty.
Key Specifications
|
Parameter |
Value |
|
Plate Material |
Stainless steel 304/316L; Titanium for seawater and corrosion resistance |
|
Plate Thickness |
0.8–1.2 mm |
|
Gasket Material |
NBR (≤120°C); Fluorine rubber (≤200°C, acid/alkali resistant) |
|
Heat Exchange Area |
Single unit: 5–50 m²; Max combined: 300 m² |
|
Heat Capacity per Plate |
0.5–1.2 kW/plate |
|
Max Working Pressure |
Standard: 1.6 MPa; High-pressure: 2.5 MPa |
|
Cleaning Time |
≤2 hours per unit |
This plate-type condenser offers stable performance with low maintenance requirements. Third-party inspections are supported.
