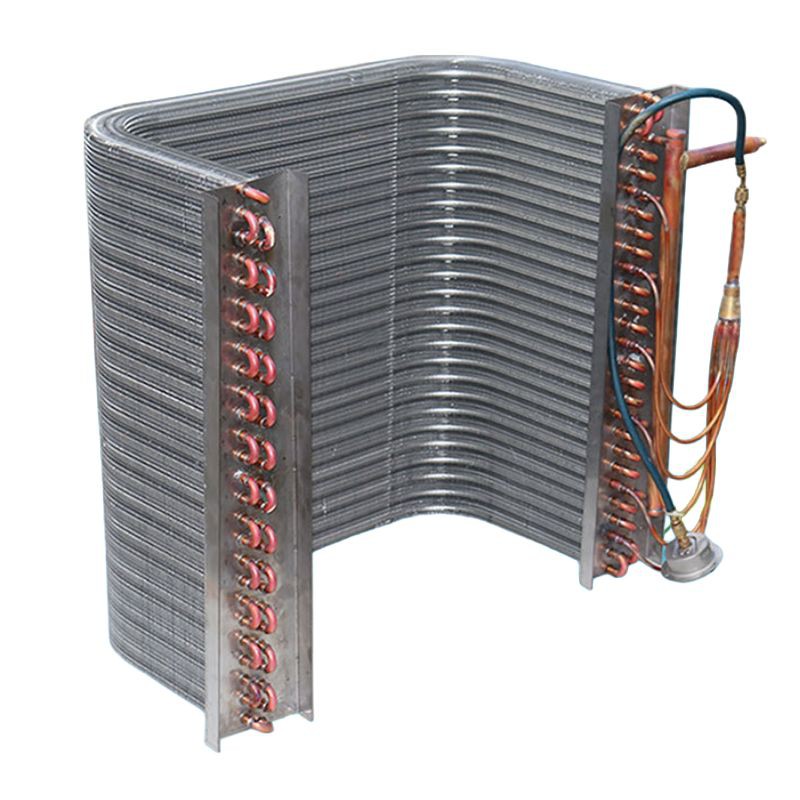

We are Delkang Refrigeration Equipment, established in 2006. Our U-type evaporator is designed for heavy industrial applications. It features a robust structure that resists vibration, endures harsh outdoor conditions, and ensures long-term reliability.
U-Shape Design for Stability
Standard dimensions range from 0.6–1.8 m in diameter and 1.5–5 m in length. The connection direction is end in and end out, with custom options available. The unit boasts strong structural integrity with a pressure rating of ≥1.6 MPa and earthquake resistance level 7 or higher, handling plant vibrations and challenging environments with ease.
Maintains Heat Exchange ≥88%
Fin rows range from 6 to 12, and face air speed is 2.0–3.5 m/s. Heat exchange remains stable under sustained high loads. A maintenance space of ≥0.6 m is included along with a cleaning port for online maintenance, eliminating the need for full disassembly. Our facility features a full-auto tube bending line and high-speed fin stamping line. OEM and ODM services are supported.
|
Parameter |
Value |
|
Installation Size |
Diameter 0.6–1.8 m × Length 1.5–5 m |
|
Connection Direction |
U-type end in/out; custom options |
|
Structural Strength |
Pressure ≥1.6 MPa; seismic grade ≥7 |
|
Fin Rows / Heat Exchange |
6–12 rows; face air speed 2.0–3.5 m/s; efficiency ≥88% |
|
Maintenance Setup |
≥0.6 m space reserved; cleaning port included; supports online cleaning |
Our U-type evaporator exceeds industry standards in heavy petrochemical and outdoor cooling projects. A one-year warranty is included.
