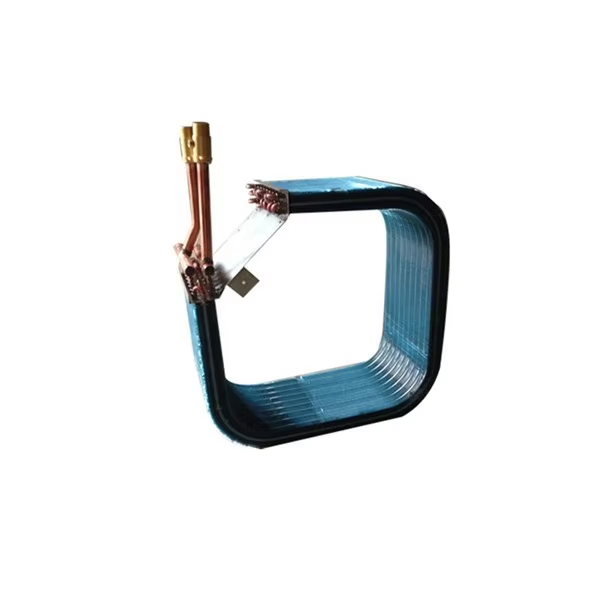

Delkang Refrigeration Equipment from Xiangshui County has specialized in cooling since 2006. The G-type evaporator is engineered for tight installation spaces. Its smart layout with top-in and bottom-out connections simplifies installation in narrow areas.
Size Fits Tight Spaces
Standard dimensions are 1.8–4.5 m long, 0.8–1.8 m wide, and 1.0–2.8 m high. Full custom sizing is available. The unit is structurally robust, with pressure rating ≥1.6 MPa and earthquake resistance level 7 or higher.
Heat Exchange Reaches ≥88%
Fin rows range from 6 to 12, with a face air speed of 2.0–3.5 m/s, providing fast and efficient heat exchange. Maintenance space of ≥0.6 m and a cleaning port support online cleaning. Our factory of 30 workers ensures quality, and we offer OEM and ODM services.
|
Parameter |
Value |
|
Installation Size |
Length 1.8–4.5 m × Width 0.8–1.8 m × Height 1.0–2.8 m |
|
Connection Direction |
G-type top in/bottom out; custom options |
|
Structural Strength |
Pressure ≥1.6 MPa; seismic grade ≥7 |
|
Fin Rows / Heat Exchange |
6–12 rows; face air speed 2.0–3.5 m/s; efficiency ≥88% |
|
Maintenance Setup |
≥0.6 m space reserved; cleaning port included; supports online cleaning |
The G-type evaporator is a reliable choice for narrow-spot cooling in small plants and compact outdoor projects. A one-year warranty is included.
