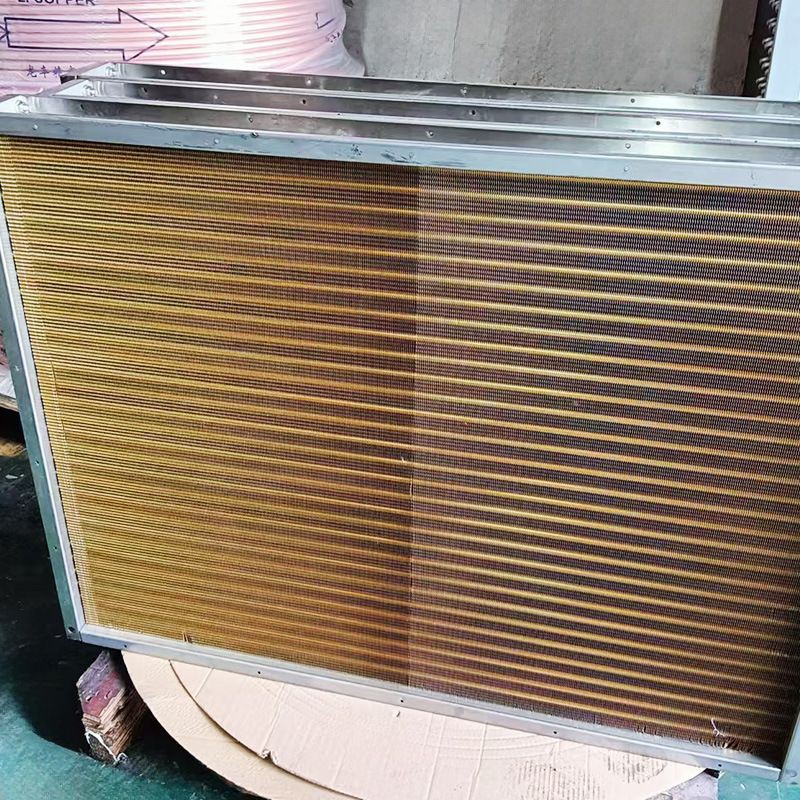

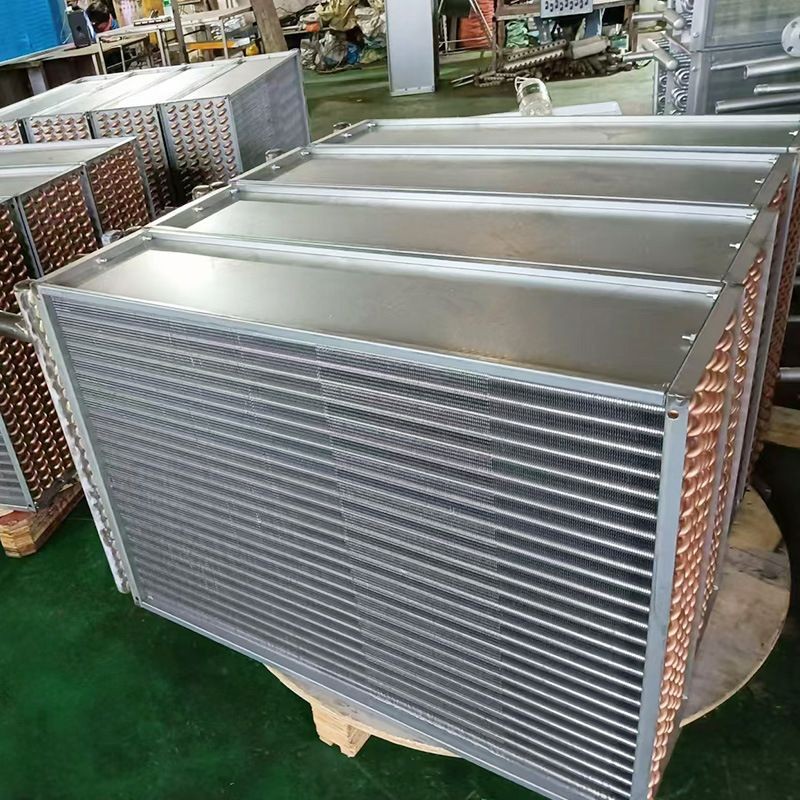

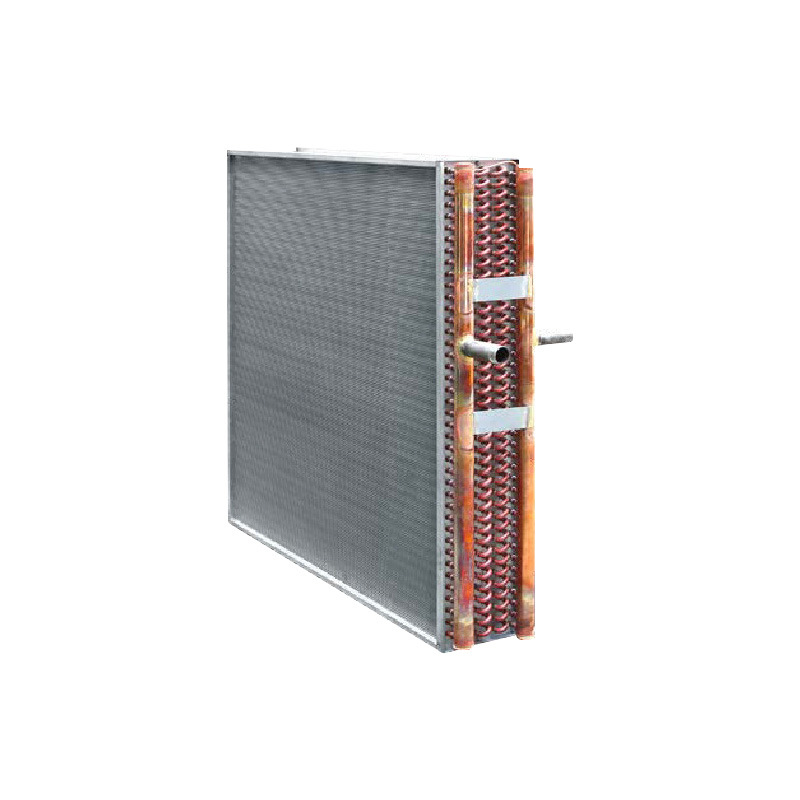

We are Delkang Refrigeration Equipment. Since 2006, we have been manufacturing refrigeration products. Our cold storage evaporator is the core component used in cold chain storage. It is suitable for all cold storage temperature ranges, from fresh food preservation to quick freezing.
Two Styles for Different Needs
We offer air coolers and coil-type evaporators. It is suitable for high-temperature storage rooms (0°C to 5°C), medium-temperature rooms (-10°C to 0°C), low-temperature rooms (-25°C to -10°C), and quick-freezing rooms (-40°C to -25°C).
The corresponding evaporation temperatures are -5°C, -15°C, -30°C, and -45°C. You can choose electric defrost or hot-gas defrost. The defrost cycle is every 6 to 12 hours, and defrost time is under 30 minutes. This helps keep storage temperatures stable.
Fin Spacing Matches Storage Temperature
For high-temperature storage, fin spacing is 2.5 mm. For low-temperature storage, it is 3.5 to 4.0 mm, which helps prevent frost buildup.
The refrigerant charge ranges from 10 to 50 kg depending on heat exchange area. Full-liquid feed and dry-feed options are available. After defrosting, no ice remains on the fins, and there is no standing water in the drain tray. OEM and ODM services are supported.
|
Parameter |
Value |
|
Cold Storage Type |
High-temp (0°C to 5°C), Medium-temp (-10°C to 0°C), Low-temp (-25°C to -10°C), Quick freeze (-40°C to -25°C) |
|
Evaporation Temperature |
High-temp (-5°C), Medium-temp (-15°C), Low-temp (-30°C), Quick freeze (-45°C) |
|
Defrost Method |
Electric (2–15 kW), hot gas (for storage rooms ≥100 m²) |
|
Fin / Defrost |
High-temp 2.5 mm, low-temp 3.5–4.0 mm; cycle 6–12 h/time; defrost time ≤30 min |
|
Refrigerant / Feed |
Charge 10–50 kg; full-liquid / dry feed optional |
|
Defrost Result |
No ice left on fins; no water in tray; no ice buildup during operation |
Our cold storage evaporator is well received by cold chain companies for its low-temperature performance and defrosting results. A one-year warranty is provided.
